In this section we will describe in more detail the User Defined Export Formats and how to utilise it fully.

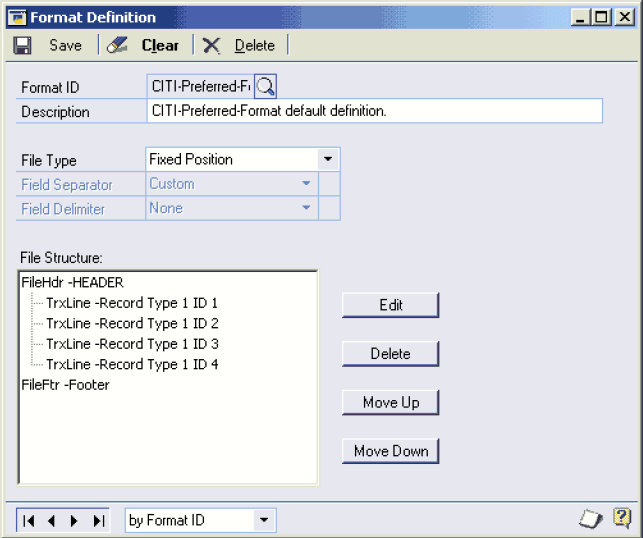

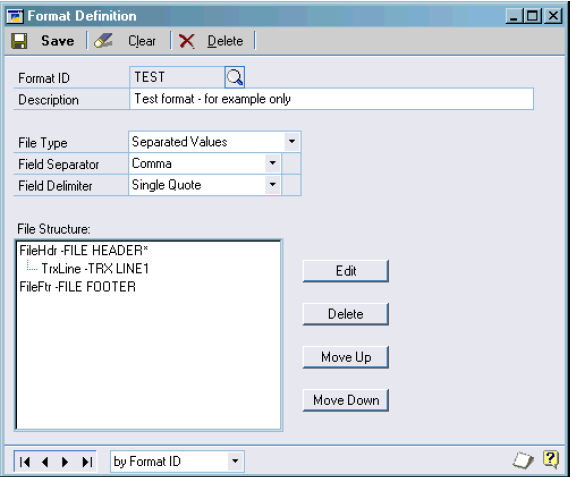

Format Definition Window
File Type
There are two file types you can choose from. Separated Values and Fixed Format.
Separated Value files look something like this depending on the options chosen: -
“PAY1125”,”Supplier Header 001”,”79”,”1.00”,”GOA4535”
The basic premise behind this format is that each field on the line is enclosed in ‘delimiters’, in this case quote’s (“) and separated by ‘separators’ in this case comma’s (,). You can define what characters you use to separate and delimit the files using the fields provided.
A fixed format file would look something like this: -
72000003036243062000000000000000000000000010002511.862511.863221755298342
There are no separators or delimiters here; each field occupies an assigned position and length within the line. So for example payment amount could exist at position 40 to position 50, which would give it a length of 11 characters.
Field Separator
If you have selected a separated value file type then this is where you select which character you wish to separate your fields with. The drop down lists the most popular characters or you may select custom and enter your own character in the space provided. The drop down list refers to the following characters:
Comma = “,”
Tab = “ “
Custom = type in your own.
Field Delimiter
If you have selected a separated value file type, then you may select a character to delimit your fields with. The drop down list contains the most commonly used characters and you can also select custom to enter a character of your choosing. The drop down list provides the following characters:
None = no delimiter for your fields.
Single Quote = ‘
Double Quote = “
Custom = enter your own character.
File Structure
The file structure box gives you an easy to read view of your export formats current file structure. The basic hierarchy of the file structure is as follows:
Record A – File Header ( 1 per file )
Record B – Account Header ( 1 per bank account/chequebook id )
Record C – Client Header ( 1 per supplier account)
Record D – Transaction Line ( 1 per transactions )
Record C’ – Client Footer ( 1 per supplier account )
Record B’ – Account Footer ( 1 per bank account/chequebook id )
Record A’ – File Footer ( 1 per file )
You can have more than one instance of each of the row types. So you could have three Transaction Line rows defined which would print out three transaction lines for each transaction. The same also applies for the all other row types.
Move Up Button
If you have multiple instances of a single row type (such as 2 file header rows) then you can select one of the rows and use this button to move it up one space within the file structure.
Move Down Button
If you have multiple instances of a single row type (such as 2 file header rows) then you can select one of the rows and use this button to move it up down space within the file structure.

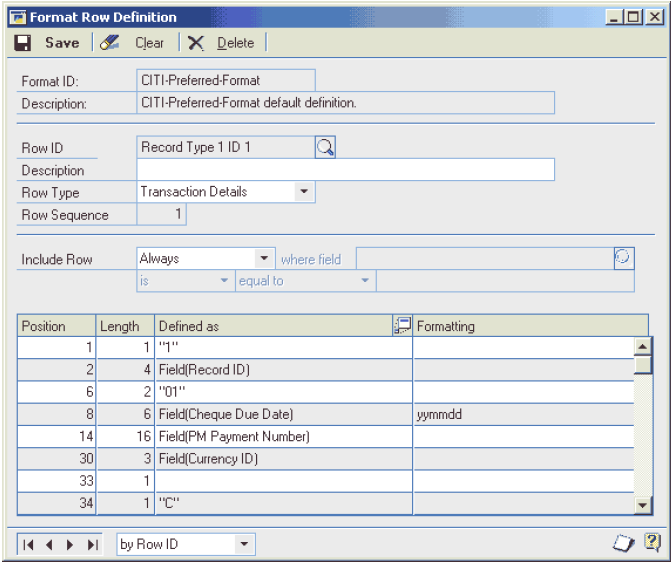

Format Row Definition Window
Row Type
There are seven different type of row types which are as follows:-
File Header, Account Header, Customer Header, Transaction Details, Customer Footer, Account Footer and File Footer.
The row type determines which ‘block’, the row belongs to. The type also determines when the line gets printed. The following list indicates when each type gets printed:
File Header : Gets printed at the top of each export file.
Account Header : This gets printed at the start of each new account.
Supplier Header : Gets printed at the start of each new supplier.
Transaction Details : Gets printed for every payment.
Supplier Footer : Gets printed at the end of each supplier.
Account Footer : This gets printed at the end of each account
File Footer : Gets printed at the bottom of each export file.
Row Sequence
This number indicates the position of the row within its row type. So if, for example, you had three transactions lines, the first of these would have a row sequence number of 1 the next would have a number of 2 and the next a sequence number of 3.
Include Row
This array of drop down lists allows you to choose to put a condition on whether or not the row should be printed. The first drop down box allows you to choose either ‘Always’ or ‘Conditionally’.
If you choose ‘Always’ then the other drop down lists for this option are disabled and this row will always get printed.
However if you choose ‘Conditionally’ then all the other options will be enabled. The first of these is the field you wish to place the restriction on. The lookup will provide you with a list of these fields so you may choose one.
Next along is the is / is not drop down list which combines with the following drop down list which provides you with a list of the following options.
‘equal to’
‘less than’
‘greater than’
‘starting with’
‘ending with’
‘containing’
‘part of’

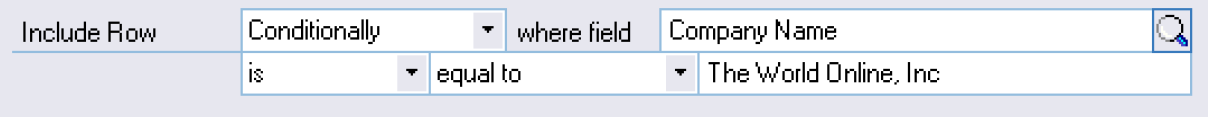

So with these two drop down lists you can form your condition such as – is equal to, is not less than, is part of, is not starting with. Etc.
The last field of the include row set is the field where you type the value relating the field you have to meet. So an example conditional could be like this.
‘Conditional’ where field ‘Payment Amount’ ‘is’ ‘less than’ ‘15.00’
So in that case the row would be printed if the payment amount were less that 15.00. If it were equal or higher then it wouldn’t be printed.
Scrolling Window
Here, in the scrolling window, is where you will define each of the fields that will go into the row you are currently editing. As before, for the other windows we will run through each of the fields on this window in some detail so you may obtain a clearer understanding of how this all fits together.
Position
This works in different ways depending on which file type you have selected.

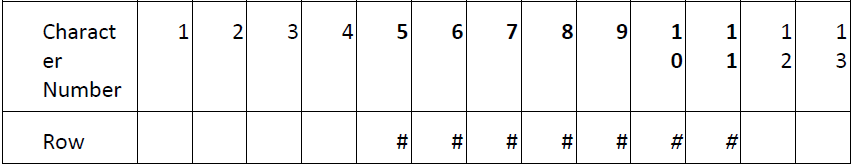

For ‘fixed format’ file types the position indicates the character position the field will start at. So position 30 would indicate the this field will start at character 30 of this row and position 14 would indicate that this field will start at character 14 of the row.
However, for ‘separated values’ file types the position indicates the field number this field will occupy within the row. So if the position was 3 then the field would occupy the third field along in the row like so:
“Field 1”,”Field 2”,”Field 3”,”….
Field 5 would occupy the fifth field along like this.
“Field 1”,”Field 2”,”Field 3”,”Field 4”,”Field 5”,”…
Length
This again works in different ways according to which file type you have specified.

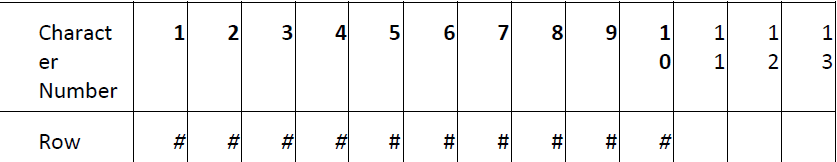

For ‘fixed format’ file types the length indicates the length of the field, i.e. the amount of characters assigned to it. So a field with a position of 5 and a length of 7 would take up characters 5 to 11 like so.
And a field defined with a position of 1 with a length of, say, 10 would take up characters 1 to 10, as shown in this diagram:-
If you selected the ‘separated values’ file type this all works a little differently. You may leave the length as 0 and if this happens then the space for the field will formatted to be as long as the actual field you want to place in there is. However if you type in a length for your separated value field then the field will only be as long as the length you defined. So, if you were placing the value “This is a field” into a separated value field and you chose the length to be 11 then the field would be printed out like this: -
“This is a f”,
or if the length was 6 it would be :-
“This I”,
If the length was 0 though the full string would appear like so: -
“This is a field”,
And so on.
Defined as:
This is where you choose what to place in this specific field. There are two ways you can enter a field definition here. You can either type it in directly or use the formula definition window provided which you access by using the expansion button nestled next to the defined as prompt. The procedure for defining fields has quite a few features and we will assume, for purposes of explaining that you are entering the definitions in the formula definition window. The window looks like this:

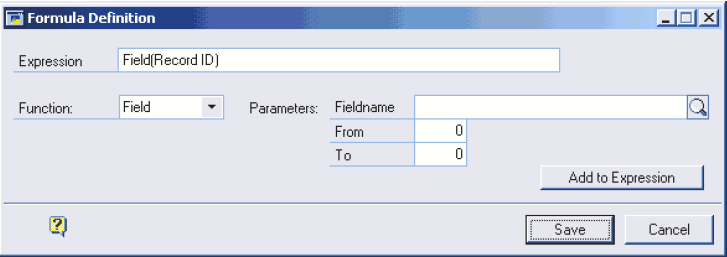

Utilizing this window you can create an expression of sorts to inform the system what you want to be placed in this field. You may use constant values (i.e. characters you just type in), functions and + or -. I will explain each of these in turn then run through a few examples on how to use them together.
Functions
There are four functions that you may use in your expression. They are:
FIELD(fieldname) :
Where ‘fieldname’ is indicated is where you would type then name of the field. The function will then place the value of the field you selected into the space allocated. You can also define a length of field to return like this:
FIELD(fieldname, from, to) where ‘from’ is the position where you wish to start cutting and ‘to’ is how many characters you wish to cut out.
For example, if you wanted the company name in the field you are defining and the company name is “The World Online Inc”. So if you wanted the whole of the company name you would define the expression as - Field(Company Name). You could either type this directly into the expression field or, and this method is the more recommended, you can drop down the function box and select the field function and then select the fieldname lookup, find company name and select that then hit the ‘Add to Expression’ button this will add Field(Company Name) to the expression. This way is safer than typing it straight it, although the system will inform you if the expression you have entered is invalid.
However if you only wanted, say, the first 9 characters of the company name the expression you would need would be - Field(Company Name,1,10) – this would give you “The World”. Again you can type this straight in or copy the method above for using the boxes and buttons provided but before you hit the ‘Add to Expression’ button you would enter 1 into the ‘From’ field and 10 into the ‘To’ field. This works like position and length in the scrolling window.
SUM(fieldname):
This function calculates the sum of the field selected, but only within the current file section. So for example if you had three lines of transaction lines printed and each had a payment amount of £10.00 and in the customer footer you defined one of the fields as Sum(Payment Amount) the value of this would be £30.00, i.e. all the payment amounts for the customer. If it was in the account footer it would be all the lines for the account ( Chequebook id) and if it was in the file footer it would be all the lines for that export file.
You can define this expression by simply typing it in or using the fields provided. So you would drop down the function list and select Sum and then open up the fieldname lookup, find Payment Amount and select that and then hit the ‘Add to Expression’ button.
COUNT(Row ID):
This function will count the number of times the Row ID specified has been printed so far. So, if for example, you defined Count(TRX LINE1) in the file footer, and the export file had printed off 7 rows with the row id of ‘TRX LINE2’ the result of this function would be 7.
Again you can simply type this in or use the fields provided. If you drop down the function list and select Count then you will see that the Fieldname prompt has changed to Row ID. If you open the lookup you will be presented with a list of the Row ID’s that exist for this format, select the one you want, in this case TRX LINE2, and then hit the ‘Add to Expression’ button.
+ and – operators
Lets explain the uses of + first. It has two uses. Firstly it can be used to add strings together. For example:
assuming company name is “The World Online Inc.” and User ID is “LESSONUSER 1”..
Field(Company Name) + Field (User ID) = “The World Online Inc.LESSONUSER 1”.
Secondly it can be used for adding numeric values together. For example:
assuming payment amount is £12.50
Field(Payment Amount) + Field(Payment Amount) = 25.00
The – symbol however only has one use. You use it to subtract numeric values from one another. So for example:
assuming payment amount is £12.50
Field(Payment Amount) + Field(Payment Amount) – Field(Payment Amount) = £12.50
(equates to £12.50 + £12.50 - £12.50)
Constant Values
Basically what this means is you can add any value you wish to type in to the expression. If you are adding a string to the expression you will need to enclose it in quotes (“”). If you wanted to add ‘Comp Name-‘ on front of the company name you would define the expression as follows.
“Comp Name- “ + Field(Company Name).
This would be printed out as “Comp Name- The World Online Inc.”, assuming the company name was The World Online Inc.
If you are including a numeric expression then you can simply type it on without quotes. ( the idea of the quotes is to signify to the system that the value enclosed within them is a string ).
So, if you wanted to add 5 to the payment amount of a line you would define the following expression:
Field(Payment Amount) + 5.
Assume the payment amount was 12.50 then this would equate to 17.50.
Notes on Expressions
- You can’t mix numeric and string values within a single expression, you must have either all of one or all of the other
- The - symbol isn’t allowed within string expressions.
Formatting
Once you have expressed/defined your field you may format it in different ways according to the type of expression you defined. The formatting is like a type of mask you fit the field into. We will run through the different types of formatting available.
String Formatting:
The following options exist for string formatting.
X - denotes a single character
D -12 wide 10 would become 000000000010
R - 15 wide length 10.99 would become000000000001099
* - denotes the remaining characters of the string
& - when used as the first character of the format mask, forced leading spaces rather than trailing spaces.
U - All text will be exported as Uppercase
If there is any other character used in the mask then this will be used as a constant character within the formatted string.
For example:
&* - formats the string to have leading spaces.
XX-XX-XX - this could be used for a bank sort code, e.g. 090226 becomes 09-02-36
X=XX=* - e.g. 91234567890 becomes 9=12=34567890
Numeric Formatting:
These are the options for numeric formatting:
- - denotes the sign will be shown, ‘-‘ for negatives, space for positives
+ - denotes the sign will be shown, ‘-‘ for negatives. ‘+’ for positives
9 - denotes a single digit (will round normally where required)
d - denotes a single digit (will always round down)
u - denotes a single digit (will always round up)
0 - fixed zero
. - denotes a decimal place
v - denotes a virtual ( or implied ) decimal place.
, - numeric separator.
Examples ( all for a value of 1234.56):
-9.99 = 1234.56
+9.99 = +1234.56
+9,999.99 = 1,234.56
9v99 = 123456 ( no decimal place indicator as this was formatted as virtual and no leading space )
9000 = 1000 (number to the nearest thousand)
d000 = 1000 (number rounded down the nearest thousand)
u000 = 2000 (number rounded up to the nearest thousand)
9u00.00 = 1300.00 (number rounded up to the nearest hundred)
99d0 = 1230 (number rounded down to the nearest ten)
99u0.00 = 1240.00 (number rounded up to the nearest ten)
NB: Don’t worry if the value is greater than the amount if digits you have specified in the format mask, the system will automatically extend it to compensate.
Date Formatting:
The following options exist for date formatting
dd - day of the month
mm - month of the year
yy - year ( without century i.e. 2 digit year)
yyyy - full year
DDD - day of the year
MMM - three letter abbreviation for the month ( e.g. January – JAN, February – FEB and so on )
Any other characters encountered will be put in as they are for separators.
So you basically combine the above options to form a date formatted to your choosing.
So for an example dat7e of 21st January 2000
dd/mm/yy - 21/01/00
yyyymmdd - 20000121
yy-DDD - 00-021
DDD/MMM - 021/JAN
Walkthrough
In this section we will walk you through the process of creating an export file from start to finish. Hopefully this will give you a clearer understanding of the whole process and how everything ties together.

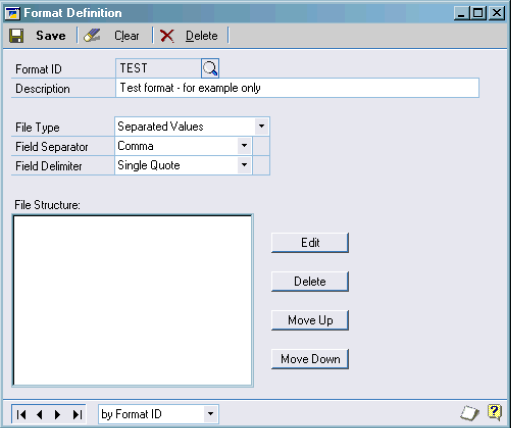

We Will open the Format Maintenance window. The first thing we need to do is name our format definition. We want to call it TEST to signify that we are just testing the system. So we type TEST into the format id field and move onto the next one which is description. Now all we want here is just a brief description of the format id. So we’ll type ‘Test format – for example only’, so that gives us a good idea of what the formats purpose is. We want a separated values file type so we set the file type option to this. And I want a comma to separate my fields and a double quote to delimit them. So we select the corresponding options from the drop down lists. Our screen should now look like this:
Now we have set up our main screen we need to define our rows to fill up our export file with.
So if we hit the edit button this will bring up the Format Row Definition window which, seeing as we have no rows defined at present, will be set up for us to enter a new row definition.
Again, firstly we need to name our Row. We are going to define the transaction line row first so we are going to call this row TRX LINE1, so we enter this into the row id field and move onto the next field which is description. Here we enter ‘Transaction Line 1’ because its short and tells us all we really need to know. The row type we want is Transaction Details so we select this from the drop down list. We always want this row to be printed so we leave the Include Row options on Always include.
Now we need to do the meat of the work and define the fields we want in the row. Basically what we want is the following fields in the following order:
‘User Date’,’Payment Number’,’Payment Amount’,’Payment Date’,’Document Number’
with a few formatting options and expressions thrown in.
We will define these in order. First up is the User Date. We put the position as 1 and leave the length as zero so it will automatically format to the correct length. Then we move onto the defined as field and hit the expansion button to open up the Formula Definition window.
I just want to print out the user date in this field so all I do is select field from the function drop down list and then find the User Date field from the lookup and hit the ‘Add to Expression’ button. So we save this expression now and move on to the formatting field. I want to format my date so I enter:
yyyy/dd/mm into the format field as this is how I want my date to appear on my export file.
Next I want to define my Payment Number. So I mark the position as 2, and leave the length as zero again. Then I move into the formula definition screen as before. I only want the first 5 characters of the payment number so I select the field functions, find Payment Number in the field lookup and enter 1 into the From field and 5 into the To field. I then add this to the expression field, save it and return to the scrolling window. I don’t want any format options so I move onto the next field.
I want my third field as the payment amount. So I set position as 3, leave length and go into the formula window. Here I just want the field payment amount so I select the appropriate function and field and add this expression and save it. I then want to format my amount with the sign showing but no decimal place. So I enter the formatting field and type in +9v99. This will give me my desired results.
My fourth field I wish to have as my payment date, so again I select 4 as my position skip length go into my formula field, but this time I fancy a change and instead of using the boxes I type in Field(Payment Dte) which I have misspelt so when I tab out of the field or go to save my expression it gives me the error ‘ Invalid field name for Field function’ so I look at my line and see I have misspelt date, so I go into my expression field and correct my error so my function now reads Field(Payment Date) and the system now lets me save this as it is a valid function. I then format it as DDD/yy and move on to the next field.

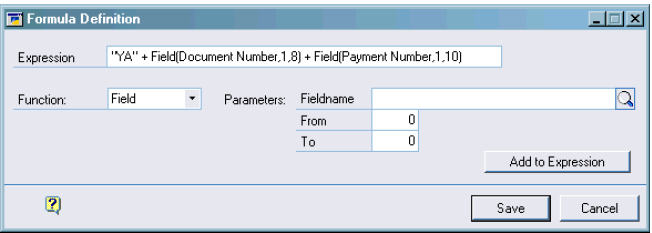

Right now I want my fifth field as Document Number but I am going to add a few things in the definition that I need in addition. I set position to 5 and I want the length to be no greater than 20. I then go into my formula window for this line. For this field I always want the first two characters to read “YA”. I go into my expression field and type in “YA” then I want to add character 1 – 8 so I select the field function then find the Document Number and put 1 into the From field and 8 into the To field. If I now hit the ‘Add to Expression’ button it will add the field expression and automatically put a ‘+’ in front of it. I now want to add the first 10 characters of the Payment Number field to the end so I select the field function, then the payment number. And indicate I want the first 10 characters out of the payment number by setting the From field to 1 and the To field to 10. I now add this to the expression. Your formula screen should now look like this:-

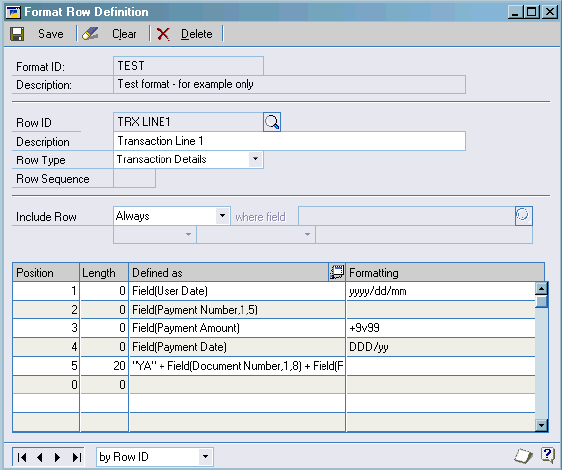

Ok so now we can save this expression and we don’t want any formatting, so this finishes our transaction line row. If we look at the Format Row window it should now be looking like so:
So we can now save and close this window and we see on our Format Maintenance window that we have a TrxLine – TRX LINE1 on our file structure indicating that we now have a transaction line for our export.
Now I want to define a File Header Row. So I hit the Edit button which brings up my row definition window. If the TRX LINE1 row is showing then just hit the ‘Clear Button’.
We’ll name out row FILE HEADER and describe it as Export File Header and give it a file type of ‘File Header’. And I only want this header to be printed for the test company – ‘The World Online Inc.’ I changed my Include Row options. First I change ‘Always’ to ‘Conditionally’ this frees up the other fields I need to work with. I now need to select which field I am going to place my condition on, in this case Company Name, so I open up the lookup form by selecting the lookup button and find company name and select that. And I leave the next two drop down lists because they are already set to what I need them to be set to. I.e. ‘is’ and ‘equal to’. If you find that these fields are not set correctly then just change them so that they are. Next we come to the last field in the Include Row set which is the name of the company we want the company name to equal. So, we type in here ‘The World Online, Inc.’ Your Include Row should now be looking like this:
Now we move onto defining our fields in this row we are creating. I want the row to consist of the following fields:-
‘Company Name’, ’User ID’, ’User Date’, ’File Sequence Number’
In that order.

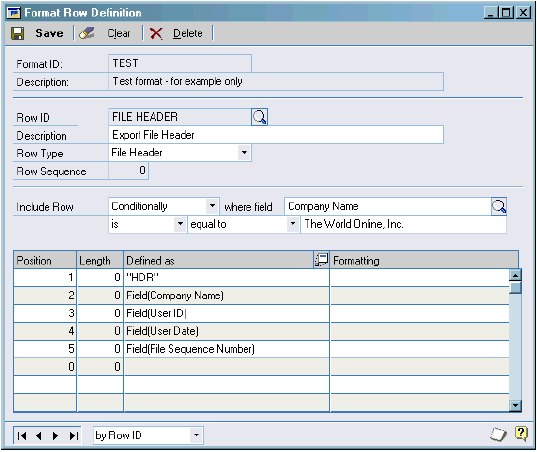

But I want the first field to just say HDR to signify that this line is the header line. So I set the position as 1, skip length and instead of opening the formula window I just type “HDR” into the defined as field and I don’t want any formatting so I move onto the next line. The next 4 fields I just want as basic Field(fieldname), and the date field I want formatted as dd/mm/yyyy. So when I have finished my window will look as so:
I’ll save this row, which will clear the screen.
Next I want to define myself a file footer. So I shall call it FILE FOOTER and describe it as Export File Footer. And I always want to include this row so I shall leave the include row option marked as always. I want to make up my footer of mainly sum and count functions. But for my first filed I want the word FTR. So I enter this into my first position like I did before with HDR in the file header. Next I want a count of the transaction lines. So I mark position as 2, skip length and enter the formula definition window. I drop down the function list, select count and then open the row lookup ( as I selected count the lookup, looks up row id’s instead of fields) and find my TRX LINE1 row and select that then add this to my expression and save it.
For the next field I want a SUM of the payment amounts. I select my position as 3 jump into the formula definition window, select Sum from the function list and find the payment amount field in the lookup and add this top the expression and save it. OK, for my last field I want the file sequence number so I set the position and enter into the formula definition window. I select the field function and the File Sequence Number field and add this to the expression. But I want to add a thousand to the sequence number. So on the end of the expression I type’ + 1000’. So the expression should end up like this:

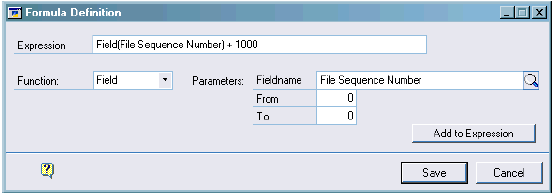

I save this expression and return to my row definition window I then enter 9 into the formatting field to indicate I don’t want to show any decimal places only the numbers before the decimal place.

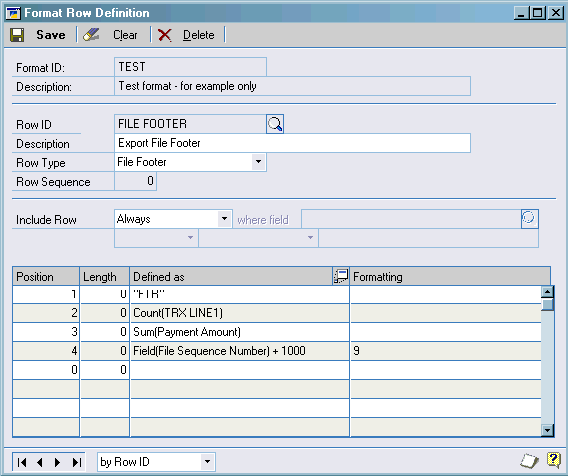

And after that the window, resembles this screen:-
So if we save this and return to the Format Maintenance screen which will be looking like so:
Notice that there is an asterisk (*) beside the file header in the file structure box. This indicates that there is a condition on the row.
We have now created a fully featured export format. This is just a basic one; you can add account and customer footers and headers as well. But this is fully working and we have covered most options available.
